Locking Compression Screw
- Home
- /
- Locking Compression Screw
![Locking Compression Screw Locking Compression Screw](images/products/img-locking-compression-screw.png)
Atlas Surgical is one of the trusted Locking Compression Screw Manufacturers in Delhi. The main purpose of the Locking Compression Screw is to provide an effective aid to fracture reduction. These are available in various sizes and dimensions to meet the requirement in the orthopedic surgery.
For the manufacturing high quality medical grade stainless steel is used that make the Locking Compression Screw features attributes like strengths and durability. We are also acclaimed for offering Locking Compression Screw that perfectly fits against the bone surface.
Catering to the needs of orthopedic industry, we have become the prior choice of various well-reputed medical organizations, public hospitals and private medical centers. We are also reputed as one of the well-known Locking Compression Screw Suppliers and Exporters in India. Buyers are also eased with the availability of Locking Compression Screw at market leading prices and timely delivery within the said timeframe.
Enquiry Now
Product Enquiry and Details

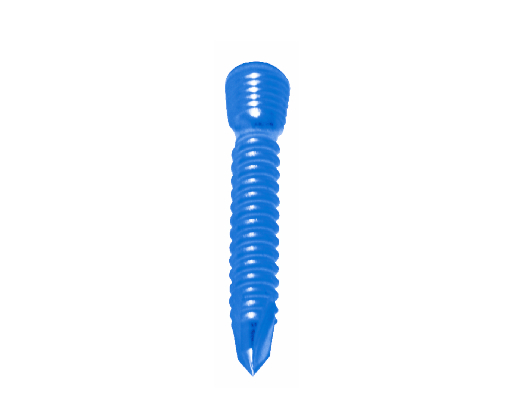

2.4mm tornillo de compresión de bloqueo, autorroscante
Length in mm Longitud en mm |
Stainless Steel Acero inoxidable |
Titanium Titanio |
Length in mm Longitud en mm |
Stainless Steel Acero inoxidable |
Titanium Titanio |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
10 | 250.10 | TI250.10 | 36 | 250.36 | TI250.36 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
12 | 250.12 | TI250.12 | 38 | 250.38 | TI250.38 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
14 | 250.14 | TI250.14 | 40 | 250.40 | TI250.40 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
16 | 250.16 | TI250.16 | 42 | 250.42 | TI250.42 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
18 | 250.18 | TI250.18 | 44 | 250.44 | TI250.44 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
20 | 250.20 | TI250.20 | 46 | 250.46 | TI250.46 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
22 | 250.22 | TI250.22 | 48 | 250.48 | TI250.48 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
24 | 250.24 | TI250.24 | 50 | 250.50 | TI250.50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
26 | 250.26 | TI250.26 | 52 | 250.52 | TI250.52 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
28 | 250.28 | TI250.28 | 54 | 250.54 | TI250.54 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
30 | 250.30 | TI250.30 | 56 | 250.56 | TI250.56 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
32 | 250.32 | TI250.32 | 58 | 250.58 | TI250.58 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
34 | 250.34 | TI250.34 | 60 | 250.60 | TI250.60 |
2.7mm tornillo de compresión de bloqueo, autorroscante
Length in mm Longitud en mm |
Stainless Steel Acero inoxidable |
Titanium Titanio |
Length in mm Longitud en mm |
Stainless Steel Acero inoxidable |
Titanium Titanio |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
10 | 251.10 | Ti251.10 | 36 | 251.36 | Ti251.36 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
12 | 251.12 | Ti251.12 | 38 | 251.38 | Ti251.38 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
14 | 251.14 | Ti251.14 | 40 | 251.40 | Ti251.40 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
16 | 251.16 | Ti251.16 | 42 | 251.42 | Ti251.42 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
18 | 251.18 | Ti251.18 | 44 | 251.44 | Ti251.44 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
20 | 251.20 | Ti251.20 | 46 | 251.46 | Ti251.46 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
22 | 251.22 | Ti251.22 | 48 | 251.48 | Ti251.48 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
24 | 251.24 | Ti251.24 | 50 | 251.50 | Ti251.50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
26 | 251.26 | Ti251.26 | 52 | 251.52 | Ti251.52 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
28 | 251.28 | Ti251.28 | 54 | 251.54 | Ti251.54 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
30 | 251.30 | Ti251.30 | 56 | 251.56 | Ti251.56 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
32 | 251.32 | Ti251.32 | 58 | 251.58 | Ti251.58 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
34 | 251.34 | Ti251.34 | 60 | 251.60 | Ti251.60 |
3.5mm tornillo de compresión de bloqueo, autorroscante
Length in mm Longitud en mm |
Stainless Steel Acero inoxidable |
Titanium Titanio |
Length in mm Longitud en mm |
Stainless Steel Acero inoxidable |
Titanium Titanio |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
10 | 252.10 | Ti252.10 | 36 | 252.36 | Ti252.36 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
12 | 252.12 | Ti252.12 | 38 | 252.38 | Ti252.38 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
14 | 252.14 | Ti252.14 | 40 | 252.40 | Ti252.40 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
16 | 252.16 | Ti252.16 | 42 | 252.42 | Ti252.42 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
18 | 252.18 | Ti252.18 | 44 | 252.44 | Ti252.44 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
20 | 252.20 | Ti252.20 | 46 | 252.46 | Ti252.46 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
22 | 252.22 | Ti252.22 | 48 | 252.48 | Ti252.48 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
24 | 252.24 | Ti252.24 | 50 | 252.50 | Ti252.50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
26 | 252.26 | Ti252.26 | 52 | 252.52 | Ti252.52 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
28 | 252.28 | Ti252.28 | 54 | 252.54 | Ti252.54 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
30 | 252.30 | Ti252.30 | 56 | 252.56 | Ti252.56 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
32 | 252.32 | Ti252.32 | 58 | 252.58 | Ti252.58 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
34 | 252.34 | Ti252.34 | 60 | 252.60 | Ti252.60 |

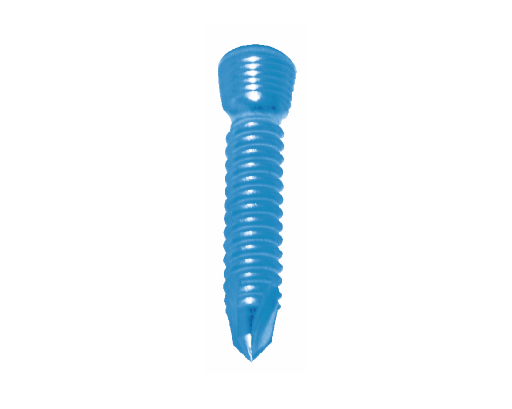

3.5mm tornillo de compresión de bloqueo, autoperforante
Length in mm Longitud en mm |
Stainless Steel Acero inoxidable |
Titanium Titanio |
Length in mm Longitud en mm |
Stainless Steel Acero inoxidable |
Titanium Titanio |
|||||||||||||||||||||||||||||||||||
10 | 253.10 | Ti253.10 | 52 | 253.52 | Ti253.52 | |||||||||||||||||||||||||||||||||||
12 | 253.12 | Ti253.12 | 54 | 253.54 | Ti253.54 | |||||||||||||||||||||||||||||||||||
14 | 253.14 | Ti253.14 | 56 | 253.56 | Ti253.56 | |||||||||||||||||||||||||||||||||||
16 | 253.16 | Ti253.16 | 58 | 253.58 | Ti253.58 | |||||||||||||||||||||||||||||||||||
18 | 253.18 | Ti253.18 | 60 | 253.60 | Ti253.60 | |||||||||||||||||||||||||||||||||||
20 | 253.20 | Ti253.20 | 62 | 253.62 | Ti253.62 | |||||||||||||||||||||||||||||||||||
22 | 253.22 | Ti253.22 | 64 | 253.64 | Ti253.64 | |||||||||||||||||||||||||||||||||||
24 | 253.24 | Ti253.24 | 66 | 253.66 | Ti253.66 | |||||||||||||||||||||||||||||||||||
26 | 253.26 | Ti253.26 | 68 | 253.68 | Ti253.68 | |||||||||||||||||||||||||||||||||||
28 | 253.28 | Ti253.28 | 70 | 253.70 | Ti253.70 | |||||||||||||||||||||||||||||||||||
30 | 253.30 | Ti253.30 | 72 | 253.72 | Ti253.72 | |||||||||||||||||||||||||||||||||||
32 | 253.32 | Ti253.32 | 74 | 253.74 | Ti253.74 | |||||||||||||||||||||||||||||||||||
34 | 253.34 | Ti253.34 | 76 | 253.76 | Ti253.76 | |||||||||||||||||||||||||||||||||||
36 | 253.36 | Ti253.36 | 78 | 253.78 | Ti253.78 | |||||||||||||||||||||||||||||||||||
38 | 253.38 | Ti253.38 | 80 | 253.80 | Ti253.80 | |||||||||||||||||||||||||||||||||||
40 | 253.40 | Ti253.40 | 82 | 253.82 | Ti253.82 | |||||||||||||||||||||||||||||||||||
42 | 253.42 | Ti253.42 | 84 | 253.84 | Ti253.84 | |||||||||||||||||||||||||||||||||||
44 | 253.44 | Ti253.44 | 86 | 253.86 | Ti253.86 | |||||||||||||||||||||||||||||||||||
46 | 253.46 | Ti253.46 | 88 | 253.88 | Ti253.88 | |||||||||||||||||||||||||||||||||||
48 | 253.48 | Ti253.48 | 90 | 253.90 | Ti253.90 | |||||||||||||||||||||||||||||||||||
50 | 253.50 | Ti253.50 |
5.0 mm tornillo de compresión de bloqueo, autorroscante
Length in mm Longitud en mm |
Stainless Steel Acero inoxidable |
Titanium Titanio |
Length in mm Longitud en mm |
Stainless Steel Acero inoxidable |
Titanium Titanio |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
20 | 262.20 | Ti262.20 | 75 | 262.75 | Ti262.75 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
25 | 262.25 | Ti262.25 | 80 | 262.80 | Ti262.80 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
30 | 262.30 | Ti262.30 | 85 | 262.85 | Ti262.85 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
35 | 262.35 | Ti262.35 | 90 | 262.90 | Ti262.90 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
40 | 262.40 | Ti262.40 | 95 | 262.95 | Ti262.95 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
45 | 262.45 | Ti262.45 | 100 | 262.100 | Ti262.100 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
50 | 262.50 | Ti262.50 | 105 | 262.105 | Ti262.105 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
55 | 262.55 | Ti262.55 | 110 | 262.110 | Ti262.110 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
60 | 262.60 | Ti262.60 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
65 | 262.65 | Ti262.65 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
70 | 262.70 | Ti262.70 |
5.0mm tornillo de compresión de bloqueo, autoperforante
Length in mm Longitud en mm |
Stainless Steel Acero inoxidable |
Titanium Titanio |
Length in mm Longitud en mm |
Stainless Steel Acero inoxidable |
Titanium Titanio |
||||||||||||||||||||||||||||||||||||||||||
20 | 264.20 | Ti264.20 | 75 | 264.75 | Ti264.75 | ||||||||||||||||||||||||||||||||||||||||||
25 | 264.25 | Ti264.25 | 80 | 264.80 | Ti264.80 | ||||||||||||||||||||||||||||||||||||||||||
30 | 264.30 | Ti264.30 | 85 | 264.85 | Ti264.85 | ||||||||||||||||||||||||||||||||||||||||||
35 | 264.35 | Ti264.35 | 90 | 264.90 | Ti264.90 | ||||||||||||||||||||||||||||||||||||||||||
40 | 264.40 | Ti264.40 | 95 | 264.95 | Ti264.95 | ||||||||||||||||||||||||||||||||||||||||||
45 | 264.45 | Ti264.45 | 100 | 264.100 | Ti264.100 | ||||||||||||||||||||||||||||||||||||||||||
50 | 264.50 | Ti264.50 | 105 | 264.105 | Ti264.105 | ||||||||||||||||||||||||||||||||||||||||||
55 | 264.55 | Ti264.55 | 110 | 264.110 | Ti264.110 | ||||||||||||||||||||||||||||||||||||||||||
60 | 264.60 | Ti264.60 | |||||||||||||||||||||||||||||||||||||||||||||
65 | 264.65 | Ti264.65 | |||||||||||||||||||||||||||||||||||||||||||||
70 | 264.70 | Ti264.70 |
